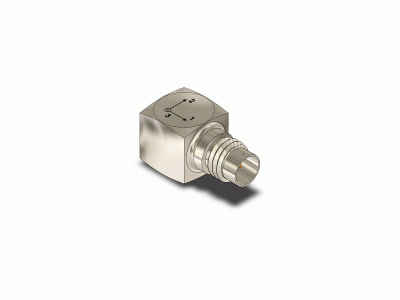

The Dytran model 3023A is a miniature triaxial IEPE accelerometer weighing just 3 grams.
Available with a 1 mV/g up to 10 mV/g sensitivity, model 3023A series features an industry standard 4-pin radial connector and either an adhesive mount, 10-32 tapped hole or 5-40 stud mount. Design of the Dytran 3023A series incorporates three quartz shear sensing elements, packaged in laser welded titanium housing. Units are hermetically sealed for reliable operation in high humidity and dirty environments.
Supplied Accessories:
- 3023A1/A4): (1) model 6580 mounting stud (5-40 to 5-40)
- 3023A2/A6/A9: (1) model 6200 mounting stud (10-32 to 10-32)
Recommended Accessories:
- model 4114B1 current source power unit (all models)
- model 6273 petro mounting wax (3023A/A3/A5),
- model 6222 adhesive mounting base(3023A1/A4))
- model 6228 adhesive mounting base/model 6272 magnetic mounting base (3023A2/A6/A9)
Compatible Cables: 6811A, 6812A, 6824A, 6828A, 6873A, 6925A, 6933A, 6967A, 6997A
3023A
Triaxial Accelerometer
Dytran Instruments Inc.
- Triaxial
- IEPE
- Lightweight
- Miniature
- 1 mV/g, 5 mV/g, 10 mV/g sensitivity
- 500g, 1000g, 5000g range
- 1.5 to 10,000 Hz frequency range (+15/-5%)
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
3
Full Scale
500 g
1000 g
5000 g
1000 g
5000 g
Output
1 mV/g
5 mV/g
10 mV/g
5 mV/g
10 mV/g
Excitation
18 - 30 V DC
Material
Titanium
Mounting
Adhesive
5-40 Tapped Hole
10-32 Tapped Hole
5-40 Tapped Hole
10-32 Tapped Hole
Connection
4-Pin Radial Connector
Min Temperature
-51 °C
Max Temperature
121 °C
Models
3023A
10 mV/g, 500g range, adhesive mount, 3 grams
3023A1
10 mV/g, 500g range, 5-40 tapped hole, 4 grams
3023A2
10 mV/g, 500g range, 10-32 tapped hole, 4 grams
3023A3
5 mV/g, 1,000g range, adhesive mount, 3 grams
3023A4
5 mV/g, 1,000g range, 5-40 tapped hole, 4 grams
3023A5
1 mV/g, 5,000g range, adhesive mount, 3 grams
3023A6
5 mV/g, 1,000g range, 10-32 tapped hole, 4 grams
3023A9
1 mV/g, 5,000g range, 10-32 tapped hole, 4 grams
