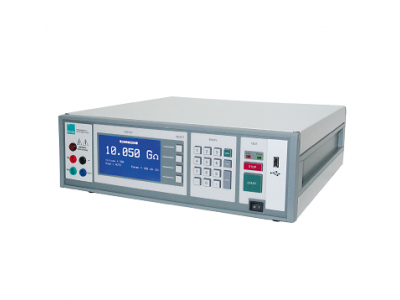

RESISTOMAT® model 2408 megohmmeter is a microprocessor controlled instrument for measuring high resistances and small currents.
Measurements can be made in the range 1 kW to 100 TW, with the user able to freely select a test voltage between 1 V and 1000 V. All instrument functions can be set manually and via RS232 interface (standard) or IEEE488 interface (option).
On-screen information guides the user efficiently through the meter’s range of application-oriented configuration options, clearly displayed on the backlit graphical display with
adjustable contrast level.
With its rugged case, this instrument is designed for both laboratory use and harsh industrial environments. For automated system applications the megohmmeter RESISTOMAT® model 2408 includes an I/O interface connection with remote start and pass/fail outputs.
Test setup configurations and measurement results can be stored in CSV format on an external USB flash drive for easy use with Microsoft Excel.
Measurements can be made in the range 1 kW to 100 TW, with the user able to freely select a test voltage between 1 V and 1000 V. All instrument functions can be set manually and via RS232 interface (standard) or IEEE488 interface (option).
On-screen information guides the user efficiently through the meter’s range of application-oriented configuration options, clearly displayed on the backlit graphical display with
adjustable contrast level.
With its rugged case, this instrument is designed for both laboratory use and harsh industrial environments. For automated system applications the megohmmeter RESISTOMAT® model 2408 includes an I/O interface connection with remote start and pass/fail outputs.
Test setup configurations and measurement results can be stored in CSV format on an external USB flash drive for easy use with Microsoft Excel.
