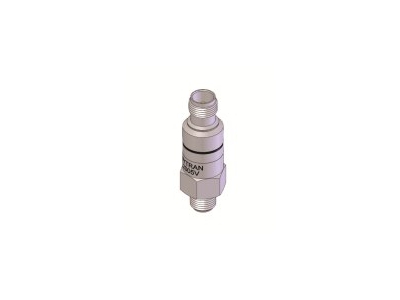

The Dytran model 2005V is a high sensitivity probe-style miniature IEPE pressure sensor with a sensitivity of 100 mV/psi, designed to measure dynamic phenomena over frequency ranges of 1 Hz to 40 kHz and higher. Design of the model 2005V incorporates a pure synthetic alpha quartz sensing element operating in compression mode to create an output signal that is precisely analogous to pressure impinging on the thin stainless steel diaphragm. Model 2005V is hermetically sealed for reliable operation in high humidity and dirty environments and base isolated to avoid EMI/ground loop interference.
Recommended Accessories: model 4110C current source power unit
Compatible Cables: 6410A
2005V
High Sensitivity IEPE Pressure Sensor
Dytran Instruments Inc.
- IEPE
- +275°F (+135°C) operation
- 100 mV/psi sensitivity
- 50 psi range
- 1,000 psi maximum pressure
- 90 kHz resonant frequency
- TNC axial connector
Details
Specifications
Type
Piezoelectric
Flush Diaphragm
Flush Diaphragm
Full Scale
50 psi
Output
5 V DC
Precision
±1.00 % FS
Excitation
18 - 30 V DC
Technology
Voltage Mode (IEPE)
Material
Stainless Steel
Thread
1/8-27 NPT Male
Min Temperature
-73 °C
Max Temperature
135 °C
Models
2005V
Dynamic Pressure Sensor
