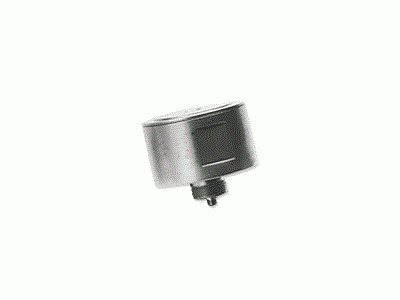

1060C

The Dytran model 1060C is a piezoelectric charge mode force sensor, designed to measure both compressive and tensile forces from 10 to 25,000 lbf over a wide frequency range. Offered with a sensitivity of 9 pC/lbf, this dynamic force sensor can measure up to 500 lbs full scale in tension mode, with reliable high temperature operation to +500°F (+260°C).

Design of the model 1060C features a quartz sensing element, operating in compression mode and packaged in a rugged stainless steel housing, for an overall weight of 460 grams. Units incorporate a 10-32 axial connector and 3/8-16 tapped hole, located at the top of the sensor housing, for ease of mounting.

Supplied Accessories: (1) model 6232 mounting stud (3/8-16)
