The Dytran model 1051V Series are an IEPE force sensors designed to measure dynamic forces from 10 lbf to 5000 lbf over a wide frequency range. Offered with a sensitivity of 1mV/lbf. As an IEPE sensor, the Series 1051V features built-in electronics, eliminating the need for an external charge amplifier and converter.

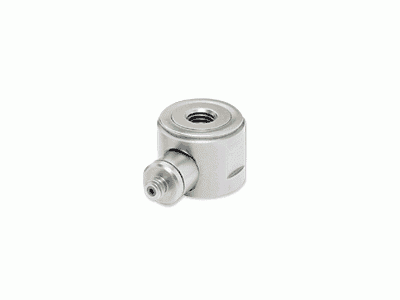

Design of the Series 1051V features a quartz sensing element, operating in compression mode and packaged in a rugged stainless steel housing weighing 28 grams. Units utilize a 10-32 radial connector and 1/4-28 tapped holes located at both the top and bottom of the sensor housing of ease of mounting.
Supplied Accessories: (1) model 6204 mounting stud (1/4-28 to ¼-28), (1) model 6210 impact cap
1051V
IEPE
Dytran Instruments Inc.
- Weight 28 grams
- Size (diameter 0.75 in, height 0.62 in)
- 10-32 radial connector
- 1/4-28 mounting hole
- IEPE (2 to 20 mA, +18 to +30 VDC)
- Stainless steel
- General purpose dynamic force measurements
Details
Specifications
Type
Piezoelectric
Application
Tension & Compression
Full Scale
10 lbs
50 lbs
100 lbs
500 lbs
1000 lbs
5000 lbs
50 lbs
100 lbs
500 lbs
1000 lbs
5000 lbs
Output
5 V DC
Precision
±1.0 % FS
Excitation
18 V - 30 V DC
Technology
Voltage Mode (IEPE)
Min Temperature
-73 °C
Max Temperature
121 °C
Models
1051V1
1051V2
1051V3
1051V4
1051V5
1051V6
Downloads
1051V Series Dynamic Force Sensors
