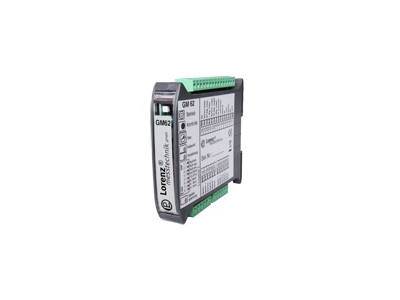

The DIN Mounting Rail SG Measuring Amplifier GM 62 has 2 parallel Sensor connections. These SG signals are amplified to an output signal of 0...±10 V con-
forming to standards. The slim-line housing allows space saving assembly in switch-cabinets close to the sensors on standardized DIN mounting rails. A galvanically separated supply voltage range of 10...30 V and the analog output of 0...±10 V allow the direct signal processing with a PLC-control. All control elements are accessible front sided behind a hinged plexiglass pane. The adaptation of the sensor sensitivity takes place on site by a DIL-switch. Preloads (tare) can be adjusted. The control switch can be activated via an external control signal or via the front-sided control key. Interference signals and transient effects of the measurement signals can be alleviated by the input filter. The vernier of amplification, zero point and filter is possible by potentiometers.
