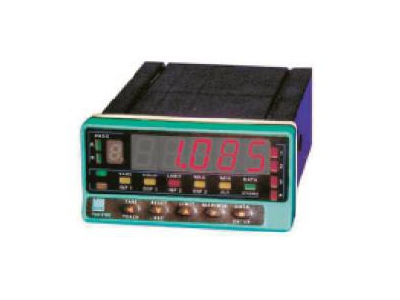

9186, DIGILOW Indicator Display
The 9186 DIGILOW indicator can be used with strain gauge sensors measuring force, pressure or torque, or for connecting displacement/angle sensors in a potentiometric configuration. It can also be used to detect ±10 VDC process signals.
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Panel Mount or Desktop Indicator
- Strain Gauge, Potentiometer or DC/DC Sensor Inputs
- Processing of ±10 V DC Standard Signals
- Two Limit Alarms (Option)
- Protection Class: IP65
- Scaling Possible Using Teach-In Display
- 16-bit Resolution
Specifications
| Input Type | Voltage Current Strain Gauge |
| No. of Inputs | 1 |
| Excitation | 5 V DC 10 V DC 24 V DC |
| Output Type | Relay |
| Supply Power | 20 - 265 V AC |
| IP Rating | IP65 |
Downloads
| 9186 DIGILOW Indicator Display | Datasheet |
| 9186-V0X0X CAD Drawing | Drawings |
| 9186-V430X CAD Drawing | Drawings |
