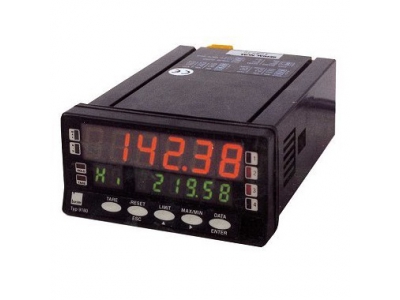

9180, Indicator Display
The 9180 panel mount indicator supports force, pressure and torque sensors operating on the strain gauge principle, as well as the connection of position and angle sensors in potentiometer or DC/DC configuration.
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Panel Mount or Desktop Indicator
- Strain Gauge, Potentiometer or DC/DC Sensor Inputs
- Range of Mathematical Functions
- Protection Class: IP65
- RS-232/485 Interface (Option)
- Analog Output (Option)
- High Sample Rate
Specifications
| Input Type | Voltage Current Strain Gauge |
| No. of Inputs | 1 |
| Excitation | 5 V DC 10 V DC |
| Output Type | Voltage Current Relay |
| Interface | RS-232/485 |
| Supply Power | 24 - 48 V AC 115 - 230 V AC |
| IP Rating | IP65 |
Downloads
| 9180 Indicator Display | Datasheet |
| 9180-V1000 CAD Drawing | Drawings |
| 9180-V3000 CAD Drawing | Drawings |
