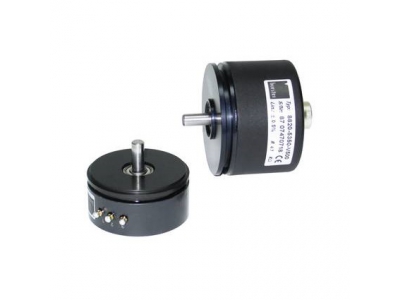

8820, Rotary Displacement Potentiometer
The 8820 rotary potentiometer is an extremely precise, low-wear unit. Its design maintains low torque, vibration resistance and shock resistance, allowing for an extended lifetime of up to 100 x 10^6 revolutions.
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Potentiometer
- Anodized Aluminum Housing
- Stainless Steel Shaft
- 14 mm Shaft
- Connection: 3 Gold-Plated Pins
- Connection: 3/4" M16 Connector (Option)
- Protection Class IP65 (Option)
- Continuous Rotation Possible
- Exceptionally Inexpensive
Specifications
| Type | Potentiometer |
| Full Scale | 350° |
| Max Speed | 600 RPM |
| Output | Potentiometric |
| Non-Linearity | ±0.05 % FS |
| Resolution | 0.01° |
| Excitation | 0 - 50 V DC |
| IP Rating | IP40 IP65 |
| Min Temperature | -55 °C |
| Max Temperature | 100 °C |
Downloads
| 8820 Angle Displacement Sensor Datasheet | Datasheet |
