Sensors of series 87350 generally consist of an oscillator, a demodulator and a transformer with moveable core. They are energized by DC voltage. The oscillator uses this DC voltage to generate the carrier frequency, which is needed for the operation of the sensor. Dependent on the position of the core, which is made of ferromagnetic material, voltages are induced by the two secondary coils of the transformer. These voltages will be demodulated, filtered and switched against each other. The result is, if the core is in its centre position, a 0 V output. Each other position of the core causes a DC voltage on the sensor’s output terminal. This output voltage is proportional to the linear deflection of the core.
Input and output terminals of these sensors are galvanically separated from each other, a connection to the sensor’s housing does not exist.
87350

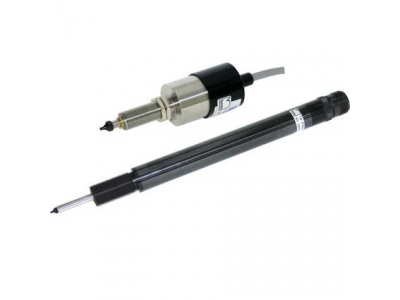

DC/DC Displacement Sensor
Burster Praezisionsmesstechnik Gmbh
- Rod Profile Housing
- Stainless Steel Housing
- Reverse Voltage Protection
- Connection: Models 87350 & 87351: 4.5m Integral Cable
- Connection: Models 87352 - 87356: 5-pin 9947 Plug Connector or 3m Integral Cable
- Free of Hysteresis
- Input & Output Galvanically Separated
Details
Specifications
Type
LVDT
Full Scale
2.54 mm [0.1"]
5.08 mm
12.7 mm [0.5"]
25.4 mm [1"]
50.8 mm [2"]
101.6 mm [4"]
152.4 mm [6"]
5.08 mm
12.7 mm [0.5"]
25.4 mm [1"]
50.8 mm [2"]
101.6 mm [4"]
152.4 mm [6"]
Output
V/V DC
Non-Linearity
±0.50 % FS
Resolution
Infinitesimal
Excitation
6 V DC
15 V DC
24 V DC
28 V DC
15 V DC
24 V DC
28 V DC
IP Rating
IP40
Min Temperature
-50 °C
Max Temperature
90 °C
Models
87350-000
± 1.27 mm
87351-000
± 2.54 mm
87352-000
± 6.35 mm
87353-000
± 12.70 mm
87354-000
± 25.40 mm
87355-000
± 50.80 mm
87356-000
± 76.20 mm
