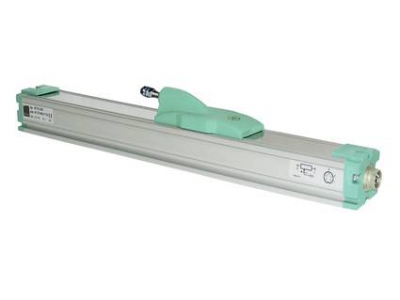

8718, Potentiometric Linear Displacement Sensor without Rod

8718, Potentiometric Linear Displacement Sensor without Rod

Displacement sensors model 8718, using a resistance track made of conductive plastic material, are suitable for direct, accurate and absolute measurements of displacements and lengths. Special processes are applied to give the resistance...

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

  • Potentiometer
  • Rodless, Square Profile
  • Anodized Aluminum Housing
  • Connection: 5-pin 9991 Plug Connector
  • Displacement Speed up to 10 m/s
  • Durability > 10^8 Operations

Specifications

TypePotentiometer
Full Scale100 mm
150 mm
200 mm
300 mm
400 mm
500 mm
600 mm
750 mm
1000 mm
1250 mm
1500 mm
1750 mm
2000 mm
OutputPotentiometric
Non-Linearity±0.05 % FS
±0.10 % FS
Resolution0.01 mm
Excitation0 - 50 V DC
IP RatingIP40
Min Temperature-30 °C
Max Temperature100 °C

Downloads

8718 Potentiometric Displacement SensorDatasheet

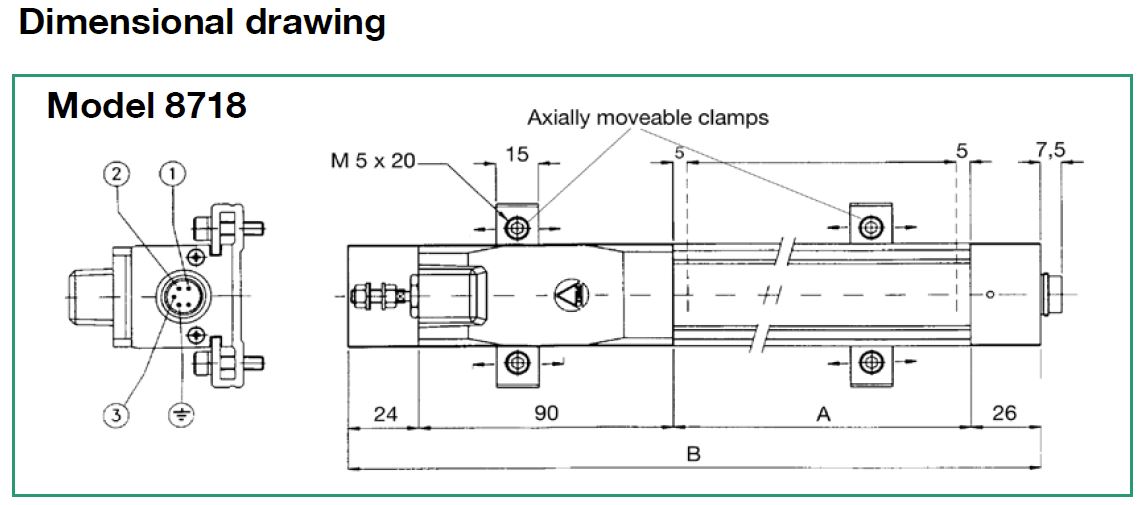

8718-100 CAD DrawingDrawings
8718-150 CAD DrawingDrawings
8718-200 CAD DrawingDrawings
8718-300 CAD DrawingDrawings
8718-400 CAD DrawingDrawings
8718-500 CAD DrawingDrawings
8718-600 CAD DrawingDrawings
8718-750 CAD DrawingDrawings
8718-1000 CAD DrawingDrawings
8718-1250 CAD DrawingDrawings
8718-1500 CAD DrawingDrawings
8718-1750 CAD DrawingDrawings
8718-2000 CAD DrawingsDrawings
