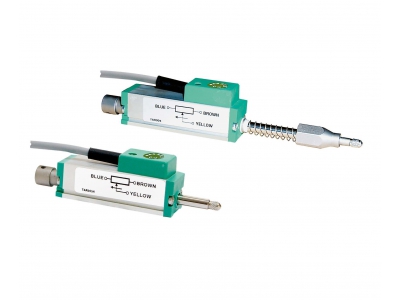

8713, Potentiometric Linear Displacement Sensor
Due to the technology employed in potentiometric displacement sensors, they always operate with a sliding contact system. Special processes are applied to give the resistance tracks low friction, low tendency to stick/slip, resistance...
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Potentiometer
- Rectangular Profile Housing
- Aluminium
- Connection: 5-pin Plug Connector
- Available with Internal Spring
- Durability: 10^8 Operations
- Displacement Speed: up to 10m/s

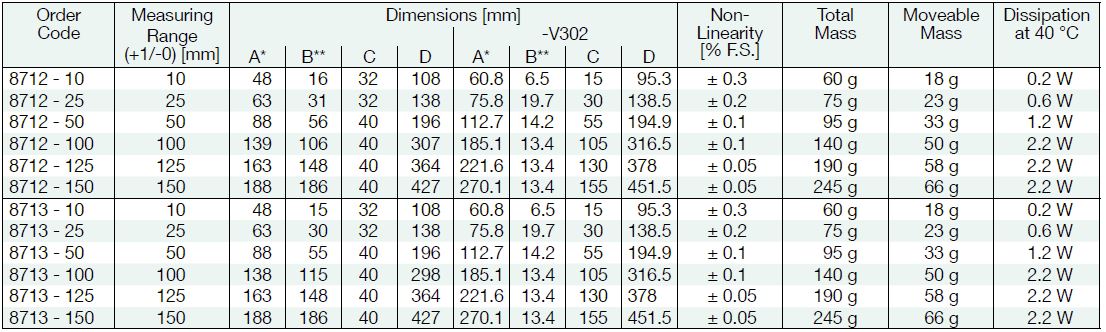

Specifications
| Type | Potentiometer |
| Full Scale | 10 mm 25 mm 50 mm |
| Output | Potentiometric |
| Non-Linearity | ±0.10 % FS ±0.20 % FS ±0.30 % FS |
| Resolution | 0.01 mm |
| Excitation | 0 - 14 V DC 0 - 25 V DC 0 - 50 V DC |
| IP Rating | IP40 |
| Min Temperature | -30 °C |
| Max Temperature | 100 °C |
Downloads
| 8713 Potentiometric Displacement Sensor | Datasheet |

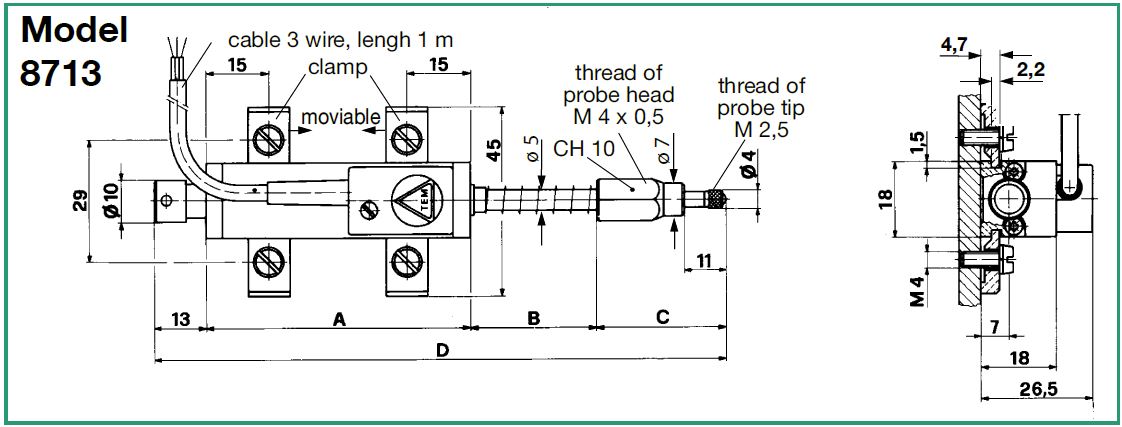

| 8713-10 CAD Drawing | Drawings |
| 8713-25 CAD Drawing | Drawings |
| 8713-50 CAD Drawing | Drawings |
