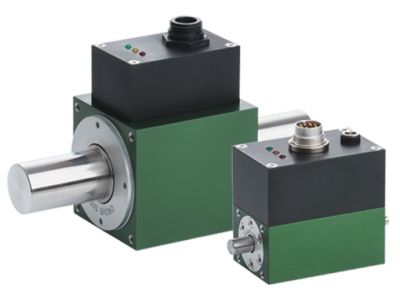

8661, Contactless Rotary Torque Sensor

8661, Contactless Rotary Torque Sensor

This torque sensor offers ranges from 0.02 N·m to 1000 N·m with a linearity deviation of ≤ ±0.05% F.S. It features an intelligent display, versatile output options (±10 V, optional ±5 V or USB), and can measure speed and angle with high precision.

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

  • Measuring range from 0.02 N·m to ±1000 N·m.
  • Low linearity deviation of ≤ ±0.05% F.S.
  • Intelligent operating state indicators.
  • 16-bit D/A converter with digital adjustment.
  • Output options: ±10 V, optional ±5 V or USB.
  • Optional speed and angle measurement with resolution up to 2000 increments.
  • Outstanding price-performance ratio.

Specifications

TypeRotary
Dual Range
Dual Range1:4
1:5
1:10
Full Scale0.02 Nm
0.05 Nm
0.1 Nm
0.2 Nm
0.5 Nm
1 Nm
2 Nm
5 Nm
10 Nm
20 Nm
50 Nm
100 Nm
200 Nm
500 Nm
1000 Nm
Max Speed7000 RPM
15000 RPM
25000 RPM
Output±10 V DC
USB
Precision±0.05 % FS
Excitation10 V - 30 V DC
Drive SideRound Shaft
Test SideRound Shaft
IP RatingIP40
Min Temperature0 °C
Max Temperature60 °C

Downloads

8661 Contactless RotaryDatasheet
Metal Bellows Coupling (8690)Datasheet
Precision Torque Monitoring with 9307 and 8661Brochure
8661-4050-v0x00 STPDrawings
8661-4050-v0x00 CAD DrawingDrawings
8661-4100-v0x00 CAD DrawingDrawings
8661-4200-v0x00 CAD DrawingDrawings
8661-4500-vxx00 CAD DrawingDrawings
8661-5001-vxx00 CAD DrawingDrawings
8661-5002-vxx00 CAD DrawingDrawings
8661-5005-vxx00 CAD DrawingDrawings
8661-5010-vxx00 CAD DrawingDrawings
8661-5020-vxx00 CAD DrawingDrawings
8661-5050-vxx00 CAD DrawingDrawings
8661-5100-vxx00 CAD DrawingDrawings
8661-5200-vxx00 CAD DrawingDrawings
8661-5500-vxx02 CAD DrawingDrawings
8661-6001-vxx02 CAD DrawingDrawings
