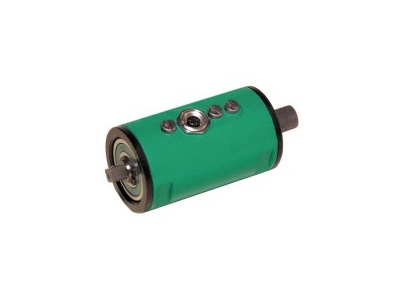

8646, Contactless Rotary Torque Sensor
The 8646 torque sensor can measure static and dynamic torque from non-rotation up to permanent high speed using new EMD technology. Non-contact transfer makes this unit maintenance-free.
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Contactless Rotary Torque Sensor
- Square Shaft & Socket
- Integrated Amplifier
- Connection: 1.5m Integral Cable
- EMD Technology
Specifications
| Type | Rotary |
| Full Scale | 5 Nm 10 Nm 15 Nm 35 Nm 150 Nm 350 Nm 500 Nm 1000 Nm |
| Max Speed | 1000 RPM |
| Output | 0.5 - 4.5 V DC |
| Precision | ±1.20 % FS ±2.20 % FS |
| Excitation | 9 V - 12 V DC |
| Drive Side | Square Socket |
| Test Side | Square Shaft |
| IP Rating | IP50 |
| Min Temperature | 0 °C |
| Max Temperature | 70 °C |
Downloads
| 8646 Square Shaft & Socket, Contactless Rotary | Datasheet |
| 8645-5002.5 CAD Drawing | Drawings |
| 8646-5005 CAD Drawing | Drawings |
| 8646-5007.5 CAD Drawing | Drawings |
| 8646-5017.5 CAD Drawing | Drawings |
| 8646-5075 CAD Drawing | Drawings |
| 8646-5175.2 CAD Drawing | Drawings |
| 8646-5250 CAD Drawing | Drawings |
| 8646-5500 CAD Drawing | Drawings |
