86413, Rotary Torque Sensor with Keyway Shafts

Products • Sensors • Torque

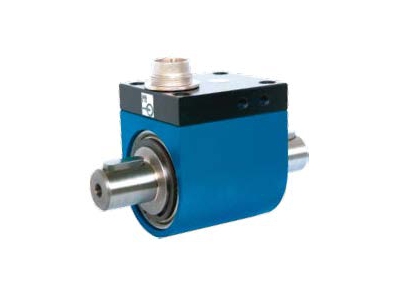

86413, Rotary Torque Sensor with Keyway Shafts

86413, Rotary Torque Sensor with Keyway Shafts

The 86413 torque sensor is capable of generating precise, reliable measurements of both static and dynamic torques in either direction. Its standardized output makes exchange easy.

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

  • Contact Ring Transfer Rotary Torque Sensor
  • Keyway Shafts
  • Connection: 6-pin Plug Connector with Speed
  • Designed for Counter/Clockwise Torque
  • Integrated Angle Measurement (Option)

Specifications

TypeRotary
Full Scale1 Nm
2 Nm
5 Nm
10 Nm
20 Nm
50 Nm
100 Nm
200 Nm
500 Nm
Max Speed1000 RPM
1500 RPM
2000 RPM
Output0.5 mV/V
2 mV/V
Speed/Angle (TTL)
Precision±0.15 % FS
Excitation2 V - 12 V DC
Drive SideRound Shaft with Keyway
Test SideRound Shaft with Keyway
IP RatingIP50
Min Temperature-10 °C
Max Temperature60 °C

Downloads

86413 Keyway Shaft, RotaryDatasheet
