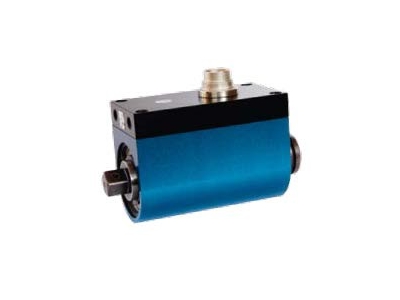

86403, Rotary Torque Sensor with Square Ends
The 86403 torque sensor is capable of generating precise, reliable measurements of both static and dynamic torques in either direction. Its standardized output makes exchange easy.
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Contact Ring Transfer Rotary Torque Sensor
- Square Shaft & Socket
- Connection: 6-pin Plug Connector with Speed
- Designed for Counter/Clockwise Torque
- Integrated Angle Measurement (Option)
Specifications
| Type | Rotary |
| Full Scale | 1 Nm 2 Nm 5 Nm 12 Nm 25 Nm 63 Nm 160 Nm 500 Nm 1000 Nm |
| Max Speed | 1000 RPM 1500 RPM 2000 RPM |
| Output | 0.5 mV/V 2 mV/V Speed/Angle (TTL) |
| Precision | ±0.15 % FS |
| Excitation | 2 V - 12 V DC |
| Drive Side | Square Socket |
| Test Side | Square Shaft |
| IP Rating | IP50 |
| Min Temperature | -10 °C |
| Max Temperature | 60 °C |
Downloads
| 86403 Square Shaft, Rotary | Datasheet |
