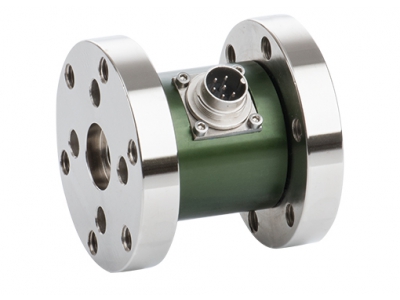

8627, Reaction Torque Sensor
The 8627 torque sensor is qualified for static and dynamic measurements on non-rotary applications. The design has been optimized so that axial forces and bending moments have only a small effect to the influence of the measuring element.
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Measurement range from 0 ... 500 Nm to 0 ... 5000 Nm.
- Linearity error 0.1% F.S., optional improvement to 0.05% F.S.
- Static & dynamic reaction torque measurement.
- Flange mounting for secure installation.
- 6-pin plug connector for reliable connectivity.
- Standardized output signal.
- Optional burster TEDS for rapid configuration.
- Simple handling and assembly.
- Special versions and higher ranges available upon request.
Specifications
| Type | Reaction |
| Full Scale | 500 Nm 1000 Nm 2000 Nm 5000 Nm |
| Output | 1 mV/V |
| Precision | ±0.10 % FS |
| Excitation | 2 V - 12 V DC |
| Drive Side | Flange |
| Test Side | Flange |
| IP Rating | IP50 |
| Min Temperature | -15 °C |
| Max Temperature | 55 °C |
