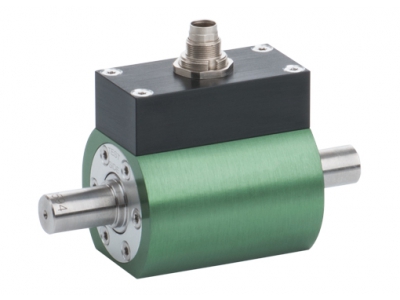

The Burster Model 8625 High-Precision Torque Sensor is a strain-gage based device designed to deliver superior accuracy in both static and dynamic measurements for non-rotating applications. Ideal for integration into systems measuring torque on micro-motors, electrical actuating drives, and micro-mechanical actuators, this sensor excels as a reference in various industrial and research settings due to its precision. It employs a modular design with an optional integrated amplifier that outputs a voltage signal proportional to the torque, further enhanced by a micro-USB interface for configuration adjustments such as filter frequency, averaging, and a tare function. The sensor's robust, anodized aluminum housing offers waterproof protection, ensuring durability and long-term reliability without the need for maintenance. With the TEDS option, it allows for rapid configuration of compatible evaluation units, automating setup processes and ensuring consistency across measurements. This sensor supports a broad measurement range from 0.01 N·m to 200 N·m, with exceptionally low linearity errors, making it a versatile tool for high-stakes precision engineering tasks.
8625
Precision Reaction Torque Sensor
Burster Praezisionsmesstechnik Gmbh
- Measurement range 0.01 N·m to 200 N·m, linearity ≤ 0.05% F.S.
- ±10 V and USB output options.
- Waterproof and compact aluminum housing.
- Reaction torque sensor for non-rotating applications.
- Round shafts for precise fit.
- Integrated amplifier with USB interface for direct data handling.
- 6- or 7-pin plug connector for secure connections.
Details
Specifications
Type
Reaction
Full Scale
0.01 Nm
0.02 Nm
0.05 Nm
0.1 Nm
0.2 Nm
0.5 Nm
1 Nm
2 Nm
5 Nm
10 Nm
20 Nm
50 Nm
100 Nm
200 Nm
500 Nm
0.02 Nm
0.05 Nm
0.1 Nm
0.2 Nm
0.5 Nm
1 Nm
2 Nm
5 Nm
10 Nm
20 Nm
50 Nm
100 Nm
200 Nm
500 Nm
Output
1 mV/V
Precision
±0.12 % FS
Excitation
2 V - 12 V DC
Drive Side
Round Shaft
Test Side
Round Shaft
IP Rating
IP40
Min Temperature
-15 °C
Max Temperature
70 °C
Models
8625-4010
0.01 Nm
8625-4020
0.02 Nm
8625-4050
0.05 Nm
8625-4100
0.10 Nm
8625-4200
0.20 Nm
8625-4500
0.50 Nm
8625-5001
1 Nm
8625-5002
2 Nm
8625-5005
5 Nm
8625-5010
10 Nm
8625-5020
20 Nm
8625-5050
50 Nm
8625-5100
100 Nm
8625-5200
200 Nm
Accessories
8600-Z003
Flange Adapter, Measurement Ranges 100 Nm & 200 Nm
8690
Bellows Coupling
8691
Bellows Coupling
