8431 - Burster Load Cell, Miniature Precision

8431, Burster Load Cell, Miniature Precision

Precise tension and compression force measurements can be performed in limited space with model 8431 and 8432 precision miniature load cells. High precision, various measuring ranges, convenient load application via threaded pins with external...

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

Minimum Lateral Sensitivity
Tension & Compression
Accuracy: Range ≤ 1 kN: < ±0.15% F.S.
Accuracy: Range ≥ 2 kN: < ±0.20% F.S.

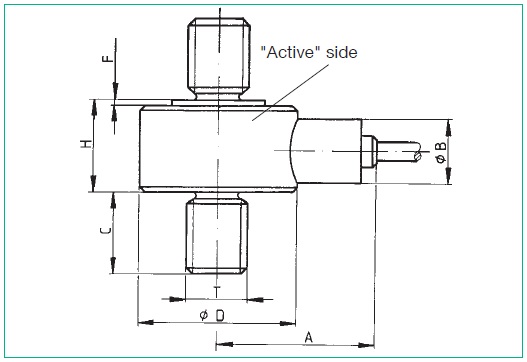

Outer Diameter: 19.1mm - 25.4mm
Height: 20.4mm - 90.5mm
Connection: 1.5m Integral Cable
Stainless Steel

Specifications

Type	Rod Type
Application	Tension & Compression
Full Scale	0.55 lbs 1.1 lbs 2.2 lbs 4.5 lbs 11.2 lbs 22 lbs 45 lbs 112 lbs 220 lbs 450 lbs 1120 lbs 2200 lbs 4500 lbs 9000 lbs 11200 lbs 22000 lbs
Output	1.5 mV/V 2 mV/V 15 - 40 mV/V
Precision	±0.15 % FS ±0.2 % FS
Excitation	5 V DC 10 V DC 5 V AC 10 V AC
IP Rating	IP65
Min Temperature	-55 °C
Max Temperature	120 °C

Downloads

8431, Miniature Precision Load Cell	Datasheet
8431-5005 CAD Drawing	Drawings
8431-5010 CAD Drawing	Drawings
8431-5010-v015 CAD Drawing	Drawings
8431-5020 CAD Drawing	Drawings
8431-5020-v015 CAD Drawing	Drawings
8431-5050 CAD Drawing	Drawings
8431-5050-v015 CAD Drawing	Drawings
8431-5100 CAD Drawing	Drawings
8431-5100-v015 CAD Drawing	Drawings
8431-5200 CAD Drawing	Drawings
8431-5200-v015 CAD Drawing	Drawings
8431-5500 CAD Drawing	Drawings
8431-5500-v015 CAD Drawing	Drawings
8431-6001 CAD Drawing	Drawings
8431-6001-v015 CAD Drawing	Drawings
8431-6002 CAD Drawing	Drawings
8431-6002-v015 CAD Drawing	Drawings
8431-6005 CAD Drawing	Drawings
8431-6005-v015 CAD Drawing	Drawings
8431-6010 CAD Drawing	Drawings
8431-6010-v015 CAD Drawing	Drawings
8431-6020 CAD Drawing	Drawings
8431-6020-v015 CAD Drawing	Drawings
8431-6050 CAD Drawing	Drawings
8431-6050-v015 CAD Drawing	Drawings
8431-6100 CAD Drawing	Drawings
8431-6100-v015 CAD Drawing	Drawings
