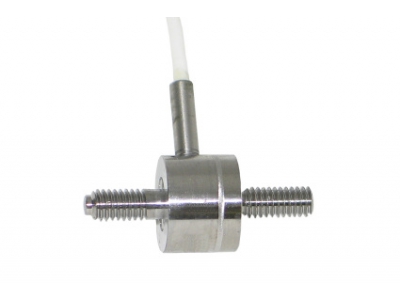

8417, Burster Load Cell, Subminiature
Load cell model 8417 measures the tension or compression force between both axially mounted metric exterior threads on the cylindrical sensor housing. Forces are only applied to the threading, which accommodate counter nuts and must not be...
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Simple Screw Mounting
- Tension & Compression
- Accuracy: Range ≤ 500 N: < ±0.9% F.S.
- Accuracy: Range ≥ 1000 N: < ±0.5% F.S.
- Outer Diameter: 12.0mm - 20.0mm
- Height: 28.0mm - 40.0mm
- Connection: 2m Integral Cable
- Stainless Steel
- Rugged Construction

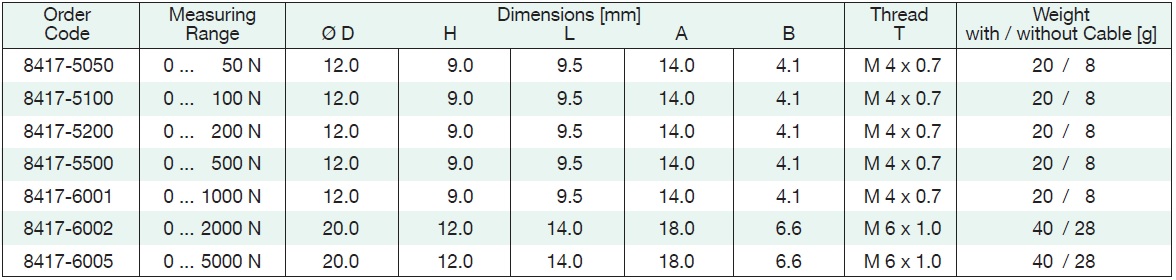

Specifications
| Type | Rod Type |
| Application | Tension & Compression |
| Full Scale | 11.2 lbs 22 lbs 45 lbs 112 lbs 220 lbs 450 lbs 1120 lbs |
| Output | 1.2 mV/V 5 - 30 mV/V |
| Precision | ±0.5 % FS ±0.9 % FS |
| Excitation | 5 V DC |
| IP Rating | IP54 |
| Min Temperature | 0 °C |
| Max Temperature | 80 °C |
