8414, Burster Load Cell, Subminiature

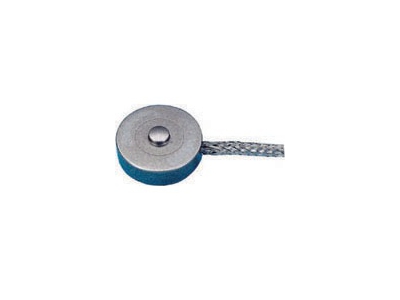

The sub-miniature compression load cells are flat, cylindrical with covered bottoms. The load application button for receiving the compression forces is an integrated part of the top, which is the sensor's membrane. The strain gauges are...
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- High Resonance Frequencies
- Compression
- Accuracy: Range ≤ 5 N: < ±0.50% F.S.
- Accuracy: Range ≥ 10 N: < ±0.25% F.S.
- Overload Protection
- Outer Diameter: 9.4mm
- Height: 6.4mm
- Connection: 1.5m Integral Cable
- Stainless Steel
Specifications
| Type | Load Button |
| Application | Compression |

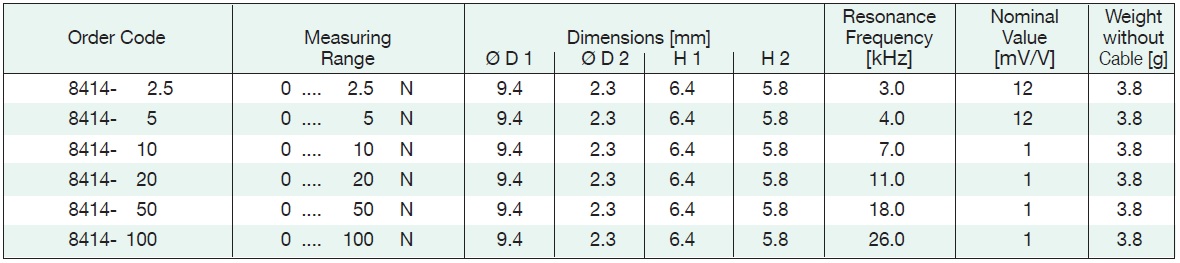

| Full Scale | 0.55 lbs 1.1 lbs 2.2 lbs 4.5 lbs 11.2 lbs 22 lbs |
| Output | 1 mV/V 12 mV/V |
| Precision | ±0.25 % FS ±0.5 % FS |
| Excitation | 5 V DC |
| IP Rating | IP54 |
| Min Temperature | -55 °C |
| Max Temperature | 120 °C |
Downloads
| 8414, Subminiature Compression Load Cell | Datasheet |

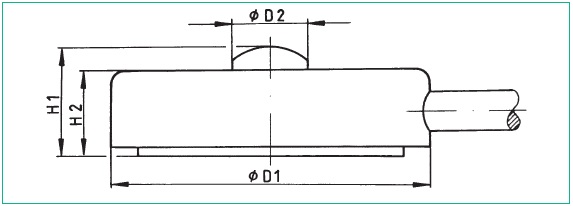

| 8414-2_5 CAD Drawing | Drawings |
| 8414-2_5-v010 CAD Drawing | Drawings |
| 8414-5 CAD Drawing | Drawings |
| 8414-5-v010 CAD Drawing | Drawings |
| 8414-10 CAD Drawing | Drawings |
| 8414-10-v010 CAD Drawing | Drawings |
| 8414-20 CAD Drawing | Drawings |
| 8414-20-v010 CAD Drawing | Drawings |
| 8414-50 CAD Drawing | Drawings |
| 8414-50-v010 CAD Drawing | Drawings |
| 8414-100 CAD Drawing | Drawings |
| 8414-100-v010 CAD Drawing | Drawings |
