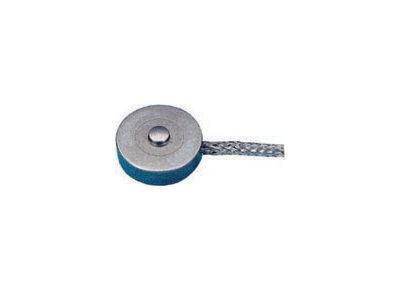

8413, Burster Load Cell, Subminiature
The sub-miniature compression load cells are flat, cylindrical with covered bottoms. The load application button for receiving the compression forces is an integrated part of the top, which is the sensor's membrane. The strain gauges are...
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- High Resonance Frequencies
- Compression
- Accuracy: Range ≤ 5 N: < ±0.50% F.S.
- Accuracy: Range ≥ 10 N: < ±0.25% F.S.
- Outer Diameter: 9.7mm - 19.1mm
- Height: 3.4mm - 6.4mm
- Connection: 1.5m Integral Cable
- Stainless Steel

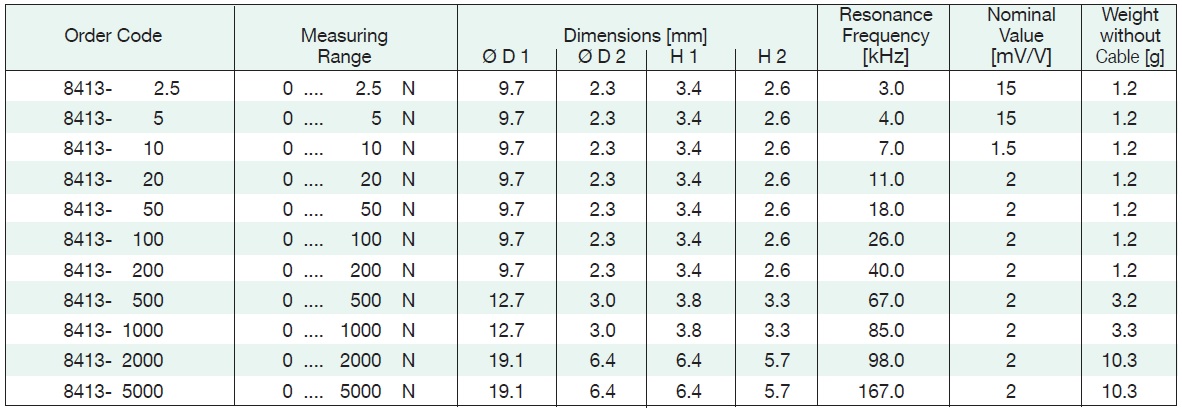

Specifications
| Type | Load Button |
| Application | Compression |
| Full Scale | 0.55 lbs 1.1 lbs 2.2 lbs 4.5 lbs 11.2 lbs 22 lbs 45 lbs 112 lbs 220 lbs 450 lbs 1120 lbs |
| Output | 1.5 mV/V 2 mV/V 15 mV/V |
| Precision | ±0.25 % FS ±0.5 % FS |
| Excitation | 5 V DC |
| IP Rating | IP54 |
| Min Temperature | -55 °C |
| Max Temperature | 120 °C |

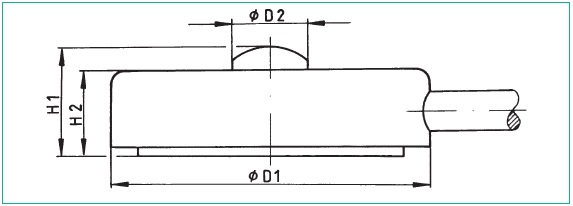

Downloads
| 8413 and 8414, Subminiature Compression Load Cell | Datasheet |
| 8413-2_5 | Drawings |
| 8413-2_5-v010 | Drawings |
| 8413-5 | Drawings |
| 8413-5-v010 | Drawings |
| 8413-10 | Drawings |
| 8413-10-v010 | Drawings |
| 8413-20 | Drawings |
| 8413-20-v010 | Drawings |
| 8413-50 | Drawings |
| 8413-50-v010 | Drawings |
| 8413-100 | Drawings |
| 8413-100-v010 | Drawings |
| 8413-200 | Drawings |
| 8413-200-v010 | Drawings |
| 8413-500 | Drawings |
| 8413-500-v010 | Drawings |
| 8413-1000 | Drawings |
| 8413-1000-v010 | Drawings |
| 8413-2000 | Drawings |
| 8413-2000-v010 | Drawings |
| 8413-5000 | Drawings |
| 8413-5000-v010 | Drawings |
