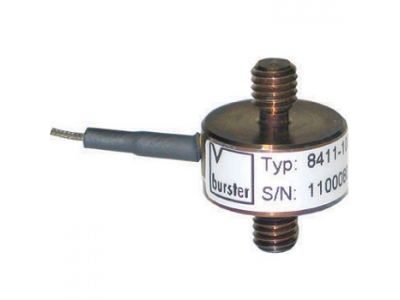

8411, Burster Load Cell, Subminiature
The forces to be measured are applied centrally to the load cell through the two threaded pins. One covering surface of the cylindrical sensor housing is implemented as a measuring element, with the strain gauge being applied to its inner side....
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- High Resonance Frequency
- Tension & Compression
- Accuracy: Better than ±0.5% of F.S.

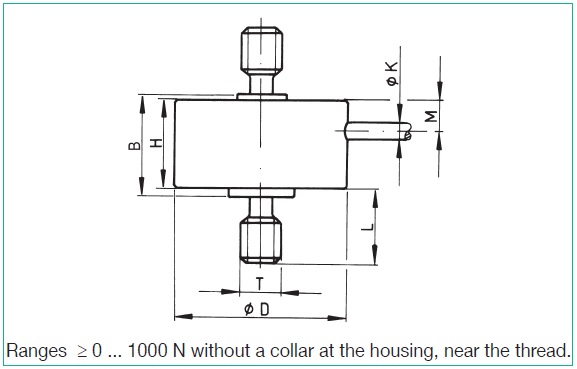

- Outer Diameter: 12.7mm - 19.1mm
- Height: 16.6mm - 25.1mm
- Stainless Steel
- Connection: 1.5m Integral Cable

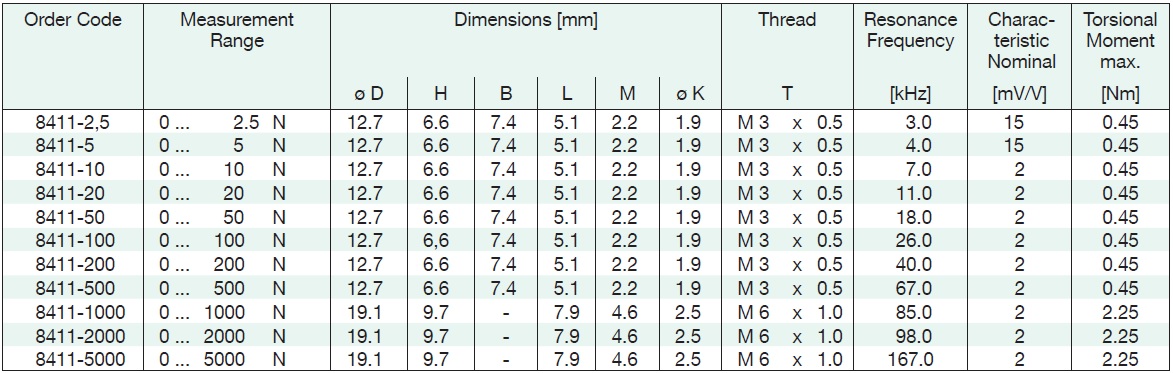

Specifications
| Type | Rod Type |
| Application | Tension & Compression |
| Full Scale | 0.55 lbs 1.1 lbs 2.2 lbs 4.5 lbs 11.2 lbs 22 lbs 45 lbs 112 lbs 220 lbs 450 lbs 1120 lbs |
| Output | 2 mV/V 15 mV/V |
| Precision | ±0.5 % FS |
| Excitation | 5 V DC |
| IP Rating | IP54 |
| Min Temperature | -55 °C |
| Max Temperature | 120 °C |
