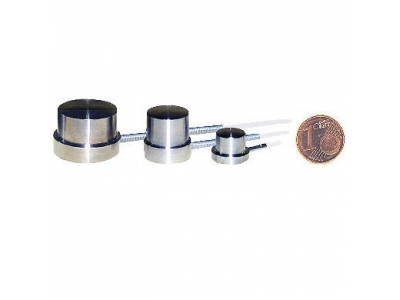

8402, Burster Load Cell, Miniature
8402 had a rounded top, in shape of a little hat. The force to be measured is led into the sensor eccentrically and free of lateral force. Strain gauges arranged in a full bridge are applied on the generated surface of the sensor. By...
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- With Standardized Output Signal
- Tension & Compression
- Accuracy: Range 1 kN: ±0.75% F.S.
- Accuracy: Range > 1 kN: ±0.50% F.S.
- Outer Diameter: 12.7mm - 44.0mm
- Height: 9.6 mm - 38.0 mm
- Connection: 2m Integral Cable
- Stainless Steel

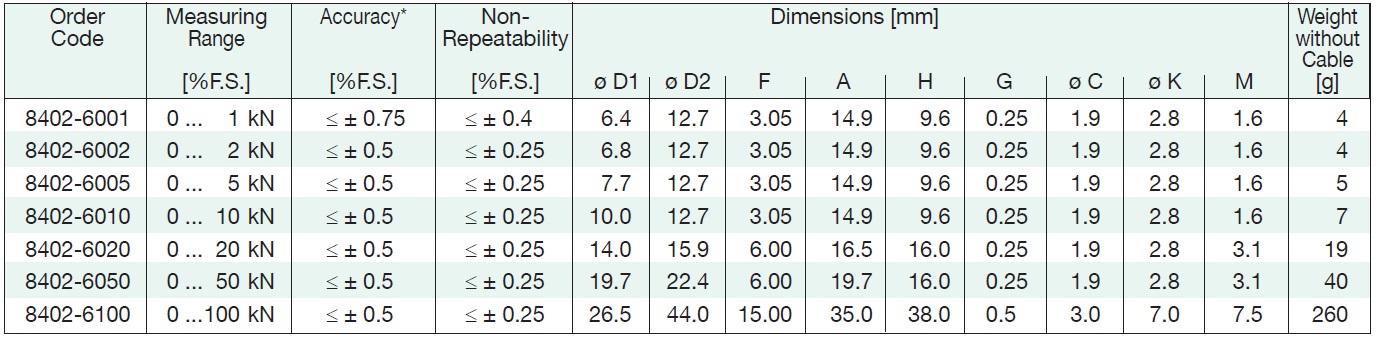

Specifications
| Type | Load Button |
| Application | Tension & Compression |
| Full Scale | 220 lbs 450 lbs 1120 lbs 2200 lbs 4500 lbs 11200 lbs 22000 lbs |
| Output | 1.5 mV/V |
| Precision | ±0.5 % FS ±0.75 % FS |
| Excitation | 3 V DC |
| IP Rating | IP54 |
| Min Temperature | -30 °C |
| Max Temperature | 100 °C |
Downloads
| 8402, Miniature Tension-Compression Load Cell | Datasheet |

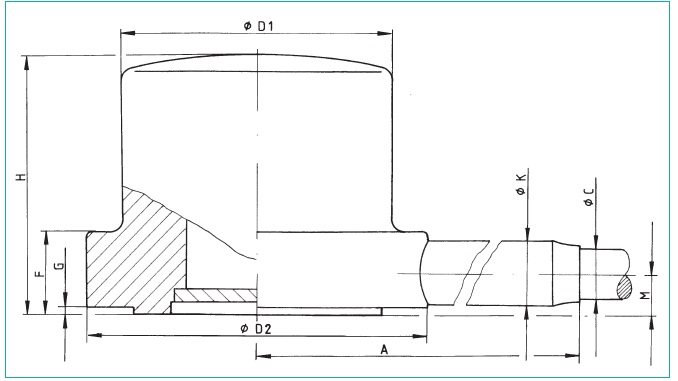

| 8402-6001 CAD Drawing | Drawings |
| 8402-6002 CAD Drawing | Drawings |
| 8402-6005 CAD Drawing | Drawings |
| 8402-6010 CAD Drawing | Drawings |
| 8402-6020 CAD Drawing | Drawings |
| 8402-6050 CAD Drawing | Drawings |
| 8402-6100 CAD Drawing | Drawings |
