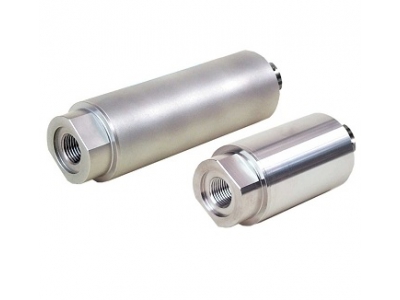

8201H, High Precision Pressure Transducer
The 8201H high precision pressure transducer can be configured with many options. These units are resistant against mechanical strain, which allows them to enable exact measurements.
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Dynamic & Static Measurements
- Suitable for Liquids & Gases
- Stainless Steel
- M16 x 1.5 Thread
- Response Frequency 5 kHz - 20 kHz (435 psi - 7250 psi)
- Over Pressure 1.5 Times Rated Pressure (≤ 4350 psi)
- Over Pressure 1.25 Times Rated Pressure (≥ 7250 psi)
- Protection Class IP65
- Internal Amplifier (Option)
Specifications
| Type | Industrial |
| Operational Mode | Vented Gauge |
| Full Scale | 435 psi 725 psi 1450 psi 2900 psi 4350 psi 7250 psi |
| Output | 1 mV/V 5 V DC 0 - 20 mA 4 - 20 mA |
| Precision | ±0.10 % FS |
| Excitation | 5 V DC |
| Technology | Strain Gauge |
| Material | Stainless Steel |
| Thread | M16 x 1.5 |
| Min Temperature | -30 °C |
| Max Temperature | 120 °C |
Downloads
| 8201H High Precision Pressure Transducer | Datasheet |
| 8201-5005-N021A CAD Drawing | Drawings |
| 8201-5010-N021A CAD Drawing | Drawings |
| 8201-5020-N021A CAD Drawing | Drawings |
| 8201-5050-N021A CAD Drawing | Drawings |
| 8201-5100-N021A CAD Drawing | Drawings |
| 8201-5200-N021A CAD Drawing | Drawings |
| 8201-5300-N021A CAD Drawing | Drawings |
| 8201-5500-N021A CAD Drawing | Drawings |
| 8201-5800-N021A CAD Drawing | Drawings |
| 8201-6001-N021A CAD Drawing | Drawings |
| 8201-5030-H021A CAD Drawing | Drawings |
| 8201-5050-H021A CAD Drawing | Drawings |
| 8201-5100-H021A CAD Drawing | Drawings |
| 8201-5200-H021A CAD Drawing | Drawings |
| 8201-5300-H021A CAD Drawing | Drawings |
| 8201-5500-H021A CAD Drawing | Drawings |
