7281

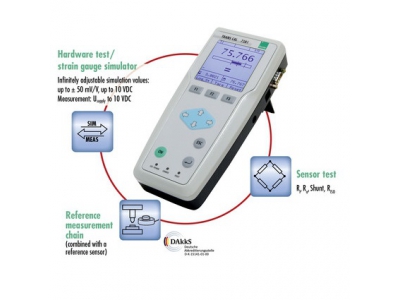

The 7281 TRANS CAL can be fitted with standard or rechargeable batteries for portable use or can run from an external power supply. Combined with a reference sensor the handy tester provides a high-precision reference measurement for force, Torque or Dimensional measurements, but is also ideal for service engineers as a tool for locating faults in device and sensor hardware.

The choice of sensors includes strain gauge, standard signals such as ±5V or ±10V and potentiometric sensors. The LCD graphics display shows the live measurement value and the corresponding bar indicator.

It also supports display functions such as data-logger, tared value in % and upper/lower limit for the comparator with simultaneous indicator (< = >) of the evaluation result. For routine testing and also fault-locating tasks, the tester makes it really simple to measure isolation resistances and input/output resistances. The equipment test function is a quick and easy way to verify that the display device complies with the characteristic value, offering strain-gauge simulation of up to ± 50 mV/V or output of a normalized signal of up to
10 V.

German-accredited DKD/DAkkS calibration certificates or factory calibration certificates are optionally available. The DigiCal configuration and data-acquisition software provides useful display and reporting functions.
