4463, High-Precision Calibration Source

4463, High-Precision Calibration Source

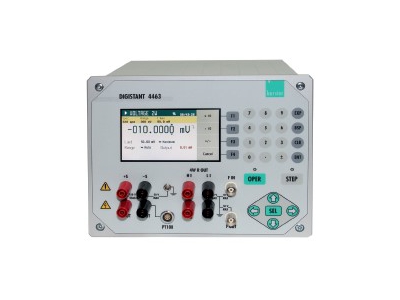

This high-precision calibration source measures currents up to ±50 mA, voltages ±100 V and temperature setpoint values thermocouples, with a high-resolution display that has very user-friendly menus that are easy to navigation.

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

  • DC voltage up to ±100.0000 V, ±0.002 %
  • DC current up to ±50.0000 mA, ±0.005 %
  • Thermocouple simulation of R, S, B, J, T, E, K, N, M, C, D, G2
  • 32 Automatic sequence functions ( ramp function, max. of 100 steps )
  • can be operated both via the keypad or via the Ethernet & USB interfaces
  • RTD Simulation Pt100 ... Pt1000, Ni100 ... Ni1000 (optional)
  • True ohmic resistance simulation 10 Ω ... 300 kΩ (optional)
  • Frequency simulation 0.01 Hz ... 15 kHz (optional)
  • Frequency measurement 0.01 Hz ... 100 kHz (optional)

Specifications

Input TypeDC Voltage
DC Current
Thermocouple
RTD
Output TypeDC Voltage
DC Current
Thermocouple
RTD
InterfaceUSB
Ethernet TCP/IP

Downloads

4463 High-Precision Calibrator SimulatorDatasheet
