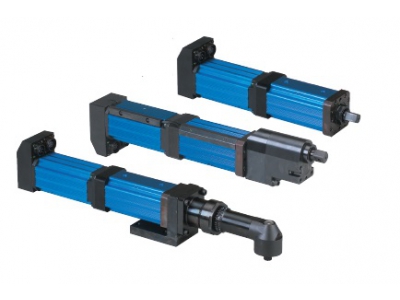

2600S, AC Servo Nutrunner
The 2600S Nutrunner offers a rugged inline configuration for larger Torque Range Applications. Torque transducer has built-in amplifier and digital control signals improve noise resistance by transferring AC/DC converted digital signals to...
Manufacturer : Coretec
Key Features
- Torque ranges up to 270 Nm depending on model
- Maximum RPM ranges up to 240 rpm
- Torque transducer with built-in amplifier and AC/DC converter board
- Improved noise resistance by transferring AC/DC converted digital signals to controller
- Controller memory can store up to 2700 curves
- External moments can be absorbed by housing, eliminating zero-balance fluctuations
Specifications
| Torque Range | 100 - 190 Nm 100 - 270 Nm |
| Max RPM | 170 240 |
| Interface | Digital I/O Profibus DeviceNet EthernetIP CC-Link |
Downloads
| 2600S AC Servo Nutrunner | Datasheet |
| AC Nutrunners | Datasheet |
| 2620S | Tech Note |
