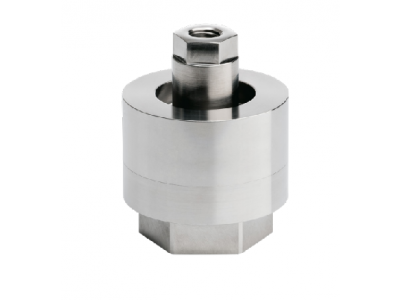

8427, Burster Low-Cost Tension and Compression Load Cell
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Minimum Lateral Sensitivity
- Tension & Compression
- Accuracy: Range: ±0.5% F.S.
- Outer Diameter: 30mm - 50mm
- Height: 34mm - 62mm
- Connection: 1.1m Integral Cable
- Stainless Steel
Specifications
| Type | Rod Type |
| Application | Tension & Compression |
| Full Scale | 4.5 lbs 11.2 lbs 22 lbs 45 lbs 112 lbs 220 lbs 450 lbs 1120 lbs 2200 lbs |
| Output | 1 mV/V |
| Precision | ±0.5 % FS ±0.75 % FS |
| Excitation | 5 V DC 5 V AC |
| IP Rating | IP65 |
| Min Temperature | -30 °C |
| Max Temperature | 80 °C |
Downloads
| 8427-Tension and Compression Load Cell | Datasheet |

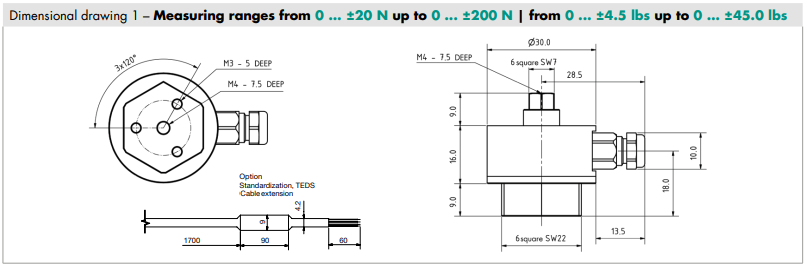

| 8427-5020...5200 CAD Drawing | Drawings |
| 8427-5500...6010 CAD Drawing | Drawings |
