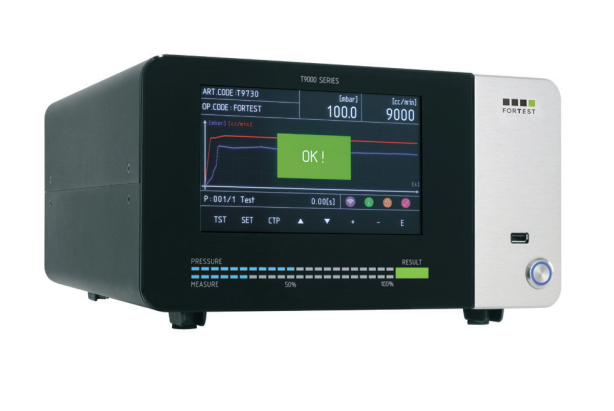

T9740, RFO High-Performance Flow Tester
With standard flow valves, this unit is ideal for testing volumes up to 10 liters. Low maintenance, stable and noise free.
Manufacturer : ForTest
Key Features
- Latest evolution in continuous capacity measurement instrumentation,
- Specifically for applications with high variability of flow values and the need for very high adjustment of the pressure, to compensate those different load losses.
- Multiple Programs for different parts
- HMI touchscreen controller
- Multiple Languages, English, French, Spanish, Italian, …
- Sequence – Fill to Test Pressure, Stabilize, Measure Absolute Pressure Decay, calibrated leak rate
- Data Collection by Serial Number, using a PC or PLC (optional Field buses, Ethernet IP, Modbus)
Specifications
| Operation | Mass Flow |
| # of Channels | 1 |
| Resolution | 0.01 sccm/min |
| Display | 7" Colour Display |
| Data Storage | USB |
| Interface | Ethernet TCP/IP EtherCAT RS-485 RS-232 Profinet |
| Accuracy | 0.25% to 0.5% |
Downloads
| RFO HIGH-PERFORMANCE FLOW TESTER | Datasheet |
