T9730, Continuous Measurement High Performance

Products • Leak Testing

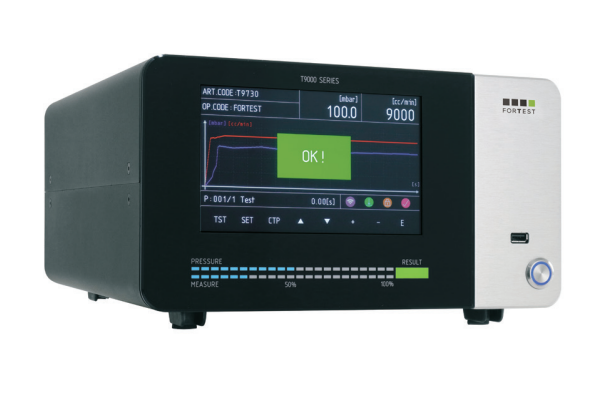

T9730, Continuous Measurement High Performance Flow Tester

T9730, Continuous Measurement High Performance Flow Tester

The most technologically forward of measurement systems with high performance, Continuous measurement flow test, this unit is ideal for testing volumes up to 10 liters. Low maintenance, stable and noise free

Manufacturer : ForTest

Key Features

  • Multiple Programs for various applications
  • HMI touchscreen controller
  • Multiple Languages, English, French, Spanish, Italian, …
  • Sequence – Fill to Test Pressure, Stabilize, Measure Absolute Pressure Decay, calibrated leak rate
  • Data Collection by Serial Number, using a PC or PLC (optional Field buses, Ethernet IP, Modbus)

Specifications

OperationMass Flow
# of Channels1
Resolution0.01 sccm/min
Display7" Colour Display
Data StorageUSB
InterfaceEthernet TCP/IP
EtherCAT
RS-485
RS-232
Profinet
Accuracy0.5%

Downloads

CONTINUOUS MEASUREMENT HIGH PERFORMANCE FLOW TESTERDatasheet
