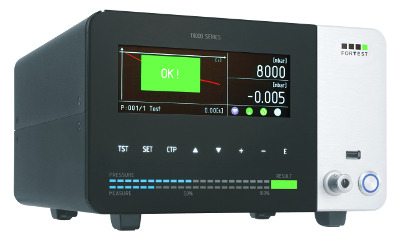

T8980, "Compliance" Universal Leak tester
In some particular situations, i.e. when the maximum permitted leak is too small, the only solution is to close the piece being testing inside a hermetic bell and pass to a shut-off "compliance" system. The solution is the T8980.
Manufacturer : ForTest
Key Features
- Extremely low leak detection
- 2 Independent measurement sections
- Test pressure up to 100bars
- Colour display
- Password protection
- I/O Signals (Start, Stop, Filling, Test, Good, Reject, 4BCD)
- Mechanical Start/Stop button
- Unit measurement available mbar, bar, psi, mmHg, mmH2O, Pa, HPa, cc/min, cc/h, pressure/s.
Specifications
| Operation | Pressure Decay |
| # of Channels | 1 |
| Resolution | 1 Pa (0.00015 psi) |
| Display | 6.2 in Colour Display |
| Data Storage | USB |
| Interface | RS-485 RS-232 |
| Accuracy | 0.5% |
