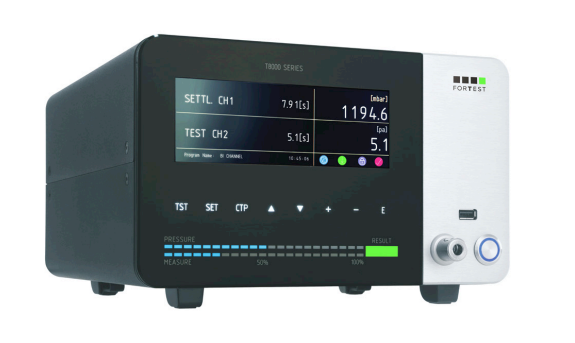

T8890, Two-Channel Absolute Decay Universal Leak Tester

T8890, Two-Channel Absolute Decay Universal Leak Tester

With standard flow valves, this unit is ideal for testing volumes up to 8 liters. Low maintenance, stable and noise free. Most compact in its category.

Manufacturer : ForTest

Key Features

  • Two channel equipment
  • 3 types of pressure adjustment
  • Multiple Programs for different parts
  • HMI touchscreen controller
  • Multiple Languages, English, French, Spanish, Italian, …
  • Sequence – Fill to Test Pressure, Stabilize, Measure Absolute Pressure Decay, calibrated leak rate
  • Data Collection by Serial Number, using a PC or PLC ( optional Field buses, Ethernet IP, Modbus)

Specifications

OperationPressure Decay
# of Channels2
Resolution0.1 Pa (0.000015 psi)
DisplayNumeric
Data StorageUSB
InterfaceEthernet TCP/IP
EtherCAT
RS-485
RS-232
EthernetIP
Profinet
Accuracy0.5%

Downloads

T8890 TWO CHANNEL ABSOLUTE DECAY UNIVERSAL LEAK TESTER.Datasheet
