T8060 - “Dual” Differential Pressure Decay

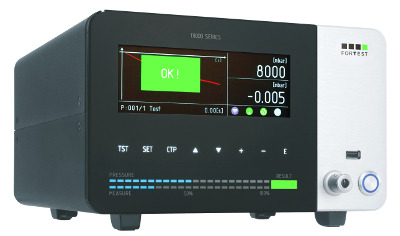

T8060, “Dual” Differential Pressure Decay Leak Tester

ForTest's differential system enables a "three-dimensional" analysis of leakage, decoupling it from noise and both thermal and mechanical phenomena.

Manufacturer : ForTest

Electronically Controlled Pressure Regulation
Multiple Programs for different parts, with the possibility of different pressures
Multiple Languages, English, French, Spanish, Italian, …
BarCode Reader inputs and Printer output
Sequence – Pre-Fill to Balance Pressure, Reduced to Balanced Test Pressure, Stabilize, Measure Differential Pressure Decay
Data Collection by Serial Number, using a PC or PLC ( optional Field buses, Ethernet IP, ProfiNet, EtherCAT Modbus)

Operation	Pressure Decay
# of Channels	1
Resolution	0.1 Pa (0.000015 psi)
Display	6.2 in Colour Display
Data Storage	USB
Interface	Ethernet TCP/IP EtherCAT RS-485 RS-232 EthernetIP Profinet
Accuracy	0.5%
