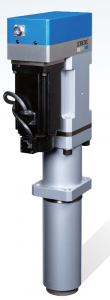

GS5, 5 kN (0.5 Ton) Assembly Servo Press
The GS5 provides a versatile solution for a variety of medium-force press-fitting and assembly applications. It is designed to handle higher loads while maintaining precise control and repeatability.
Manufacturer : Coretec
Key Features
- Maximum Force Range 5 kN (0.5 Ton)
- Stroke ranges available – 100 mm and 250 mm
- Maximum actuator speed of 400 mm/sec
- Positional repeatability of ±0.01 mm
- Load cell accuracy of ±1.5% FS (Repeatability ±0.5% FS)
- Brake holding load capacity of 0.6 kN
Specifications
| Max Force | 5 kN |
| Max Speed | 240 mm/s 400 mm/s |
| Stroke | 100 mm 250 mm |
Downloads
| Servo Press Brochure | Brochure |
