87240, DC/DC Displacement Sensor

Products • Sensors • Linear Displacement

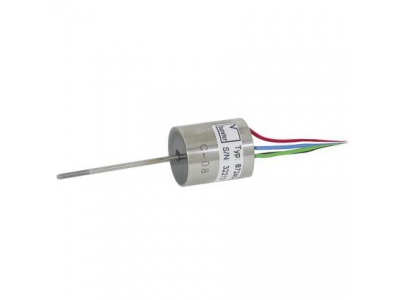

87240, DC/DC Displacement Sensor

87240, DC/DC Displacement Sensor

Displacement sensors of series 87240 convert a displacement into an analog electrical signal. They consist of a differential transformer with moveable core, an oscillator and a demodulator. These components are integrated and encapsulated in a...

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

  • Cylindrical Housing
  • Stainless Steel Housing
  • Connection: 0.45m Integral Cable
  • Free of Hysteresis
  • Suitable for Operation in Hydraulic Fluid up to 3 bar

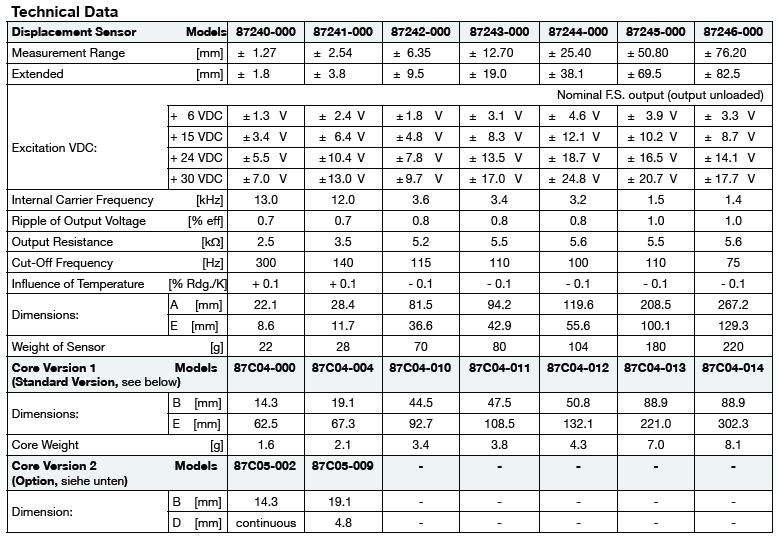

Specifications

TypeLVDT
Full Scale2.54 mm
5.08 mm
12.7 mm
25.4 mm
50.8 mm
101.6 mm
152.4 mm
OutputV/V DC
Non-Linearity±0.50 % FS
±1.00 % FS
ResolutionInfinitesimal
Excitation6 V DC
15 V DC
24 V DC
30 V DC
IP RatingIP64
Min Temperature-50 °C
Max Temperature120 °C

Downloads

87240 DC/DC Displacement SensorDatasheet

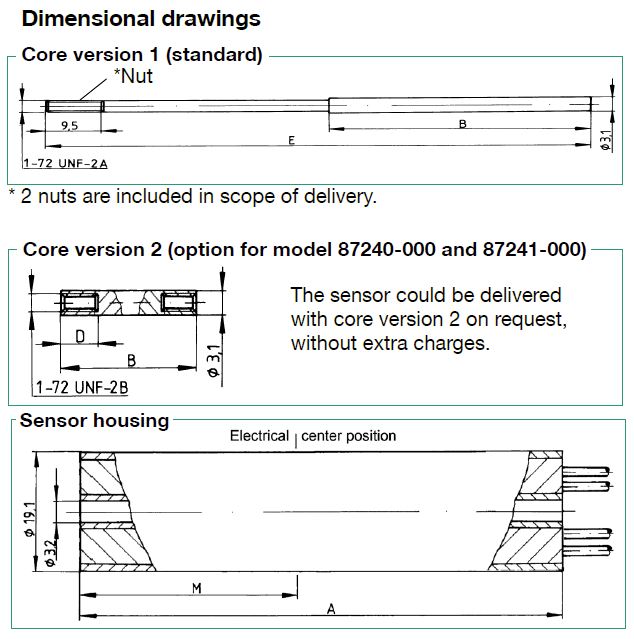

87240-000 CAD drawingDrawings
87240-000-v001 CAD DrawingDrawings
87241-000 CAD DrawingDrawings
87241-000-v001 CAD DrawingDrawings
87242-000 CAD DrawingDrawings
87242-000-v001 CAD DrawingDrawings
87243-000 CAD DrawingDrawings
87243-000-v001 CAD DrawingDrawings
87244-000 CAD DrawingDrawings
87244-000-v001Drawings
87245-000 CAD DrawingDrawings
87245-000-v001 CAD DrawingDrawings
87246-000 CAD DrawingDrawings
87246-000-v004 CAD DrawingDrawings
