8690 - Bellows Coupling

8690, Bellows Coupling

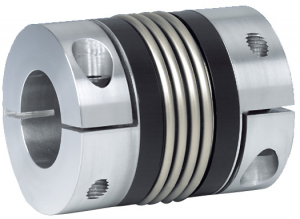

This steel bellow coupling is fastened, using a clamping hub per torque transmission, to the sensor and plant shafts. The facility-side bore is adapted to the existing shaft diameter, which means that the torque sensor can be mechanically integrated

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

Rated torques from 0 ... ±0,5 N·m to 0 ... ± 200 N·m
Adaptation to the required shaft diameter
Accurate transmission of angle and torque
Suitable for dynamic and static application

Specifications

Downloads

8690

Datasheet
