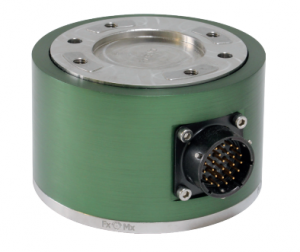

8565, Load cell and torque sensor – X/Y/Z
The robust 8565 multi-axis sensor with its low crosstalk enables you to monitor and evaluate your process at any time, regardless of the sensor’s orientation.
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Standardized output signal
- Non-linearity < 0.1 % F.S.
- Measuring range Fx: 1 kN / Fy: 1 kN / Fz: 2 kN
- Mx: 50 Nm / My: 50 Nm / Mz: 50 Nm
- Outer Diameter: 80mm
- Height: 60mm
- Connection: 3m Integral Cable
Specifications
| Type | Multi-Axis |
| # of Axis | 3 (Fz Mx My) |
| Full Scale | 220 lbs 450 lbs |
| Output | 0.9 mV/V 1 mV/V 1.2 mV/V |
| Precision | ±0.1 % FS ±0.2 % FS |
| Excitation | 5 V DC 10 V DC |
| IP Rating | IP40 |
| Min Temperature | -10 °C |
| Max Temperature | 80 °C |
Downloads
| 8565- Load cell and torque sensor | Datasheet |
