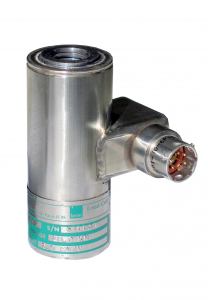

85082, Burster Load Cell, Miniature Tensile Force Sensor
Cylindrical body with Internal thread on both sides, good figures for linearity, hysteresis and long-term stability are achieved as a result of the special design of the measuring element...
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Connection: Range ≤ 200 kN: 6-pin Bayonets Connector
Specifications
| Type | Rod Type |
| Application | Tension |
| Full Scale | 2200 lbs 4500 lbs 11200 lbs 45000 lbs 112000 lbs 225000 lbs |
| Output | 2 mV/V |
| Precision | ±0.2 % FS |
| Excitation | 10 V DC 10 V AC |
| IP Rating | IP64 IP68 |
| Min Temperature | -55 °C |
| Max Temperature | 120 °C |
