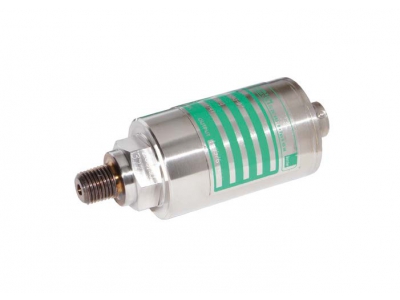

8262, High Precision Pressure Transducer
The 8262 pressure transducers have excellent long-term stability, reliability and rugged construction which makes them suitable for use in both research and production, in mechanical engineering, and many other applications.
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Dynamic & Static Measurements
- Suitable for Liquids & Gases
- 17-4 PH Stainless Steel
- 1/4-18 NPT Thread
- Resonance Frequency 0.8 kHz - 80 kHz (10 psi - 7500 psi)
- Over Pressure 1.5 Times Rated Pressure
- Thermally Insulated
- Internal Amplifier (Option)
Specifications
| Type | Industrial |
| Operational Mode | Absolute Sealed Gauge |
| Full Scale | 10 psi 15 psi 25 psi 50 psi 75 psi 100 psi 150 psi 200 psi 300 psi 500 psi 750 psi 1000 psi 1500 psi 2000 psi 3000 psi 5000 psi 7500 psi |
| Output | 2 mV/V |
| Precision | ±0.05 % FS |
| Excitation | 10 V DC 10 V AC |
| Technology | Strain Gauge |
| Material | 17-4 PH Stainless Steel |
| Thread | 1/4-18 NPT |
| Min Temperature | -50 °C |
| Max Temperature | 120 °C |
Downloads
| 8262 High Precision Pressure Transducer | Datasheet |
| 8262-15 CAD Drawing | Drawings |
| 8262-25 CAD Drawings | Drawings |
| 8262-50 CAD Drawing | Drawings |
| 8262-75 CAD Drawing | Drawings |
| 8262-100 CAD Drawing | Drawings |
| 8262-150 CAD Drawing | Drawings |
| 8262-200 CAD Drawing | Drawings |
| 8262-300 CAD Drawing | Drawings |
| 8262-500 CAD Drawing | Drawings |
| 8262-750 CAD Drawing | Drawings |
| 8262-1000 CAD Drawing | Drawings |
| 8262-1500 CAD Drawings | Drawings |
| 8262-2000 CAD Drawing | Drawings |
| 8262-3000 CAD Drawings | Drawings |
| 8262-5000 CAD Drawing | Drawings |
