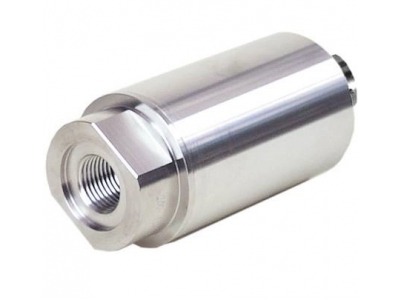

8201N, High Precision Pressure Transducer
The 8201N high precision pressure transducers are sturdy, compact, low-priced and available in many ranges with many optional configurations. The pressure transducers are easy to handle and immune to shock loads and vibrations.
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Dynamic & Static Measurements
- Suitable for Liquids & Gases
- Stainless Steel
- M16 x 1.5 Thread
- Response Frequency 1.5 kHz - 20 kHz (73 psi - 14500 psi)
- Over Pressure 1.5 Times Rated Pressure
- Protection Class IP65
- Internal Amplifier (Option)
Specifications
| Type | Industrial |
| Operational Mode | Vented Gauge |
| Full Scale | 73 psi 145 psi 290 psi 725 psi 1450 psi 2900 psi 4350 psi 7250 psi 11600 psi 14500 psi |
| Output | 1 mV/V 5 V DC 0 - 20 mA 4 - 20 mA |
| Precision | ±0.25 % FS |
| Excitation | 5 V DC |
| Technology | Strain Gauge |
| Material | Stainless Steel |
| Thread | M16 x 1.5 |
| Min Temperature | -30 °C |
| Max Temperature | 120 °C |
Downloads
| 8201N, Precision Pressure Tranducers | Datasheet |
