Operating from –40 up to +175°C, the PHT100 series is dedicated to high temperature pressure measurements. With stainless steel wetted parts, it is compatible with most media, including corrosive fluids used in automotive, aerospace and energy industries. Equipped with the premium thin film technology developed by EFE, its performances and stability over wide temperature range are excellent. The PHT100 is available with unamplified output (mV/V), compensated in temperature to deliver the best accuracy. Amplified output (Vdc) is also standard, thanks to a high performance and ruggedized built-in electronic module.

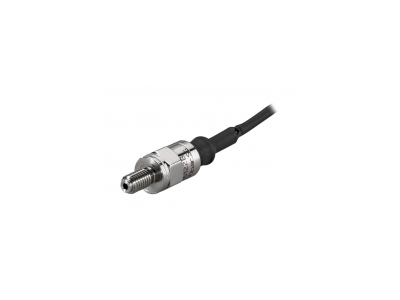

PHT100
EFE Sub Miniature Pressure Transducer for High Temperature
EFE Sensors
- Available with 0,5-4,5Vdc output
- Designed for harsh environment
- Operating from -40 to +175°C
- Ultra light : < 5 grams
Details
Specifications
Type
Miniature
Ultra Miniature
Ultra Miniature
Operational Mode
Absolute
Sealed Gauge
Vented Gauge
Sealed Gauge
Vented Gauge
Full Scale
15 psi
25 psi
50 psi
100 psi
300 psi
500 psi
1000 psi
3000 psi
25 psi
50 psi
100 psi
300 psi
500 psi
1000 psi
3000 psi
Output
1.5 mV/V
4.5 V DC
5 V DC
4.5 V DC
5 V DC
Precision
±0.25 % FS
Excitation
5 V DC
8 - 16 V DC
15 V DC
8 - 16 V DC
15 V DC
Material
Stainless Steel
Thread
M5 x 0.8
Min Temperature
-25 °C
Max Temperature
175 °C
Models
PHT101
Power supply: 5 to 15Vdc; Output Signal: mV/V
PHT103
Power supply: 5Vdc ± 10mV; Output Signal: 0.5-4.5Vdc regulated power supply
PHT107
Power supply: 8 to 16Vdc; Output Signal: 0.5-4.5Vdc unregulated power supply
