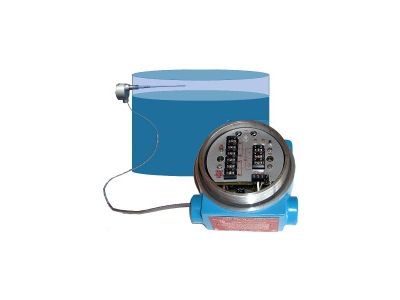

L3540

Remote Point Level Controller

  • RF Impedance
  • Probe Based
  • Compatible with L850 & L860 Series Probes
  • Wide Variety of Liquid & Solid Media
  • Remote sensor mounting
  • Vessel Connection size: L850 Series: 3/4" NPT; L860 Series: 1" NPT;
  • Cast Aluminum Housing, Explosion Proof: NEMA 4X, NEMA 7, NEMA 9; class I, II & III

Details

PRINCO’s High-Perform-X™ L3540 level controller gives you the optimum combination of reliability, sensitivity, features, and cost. Conformally coated electronics, NULL-KOTE™ circuitry, explosion-proof / weatherproof enclosures, ROLLOCK™ probe construction and our unique 10 Year Warranty mean the ultimate in reliability.

Excellent sensitivity, coupled with stability of 1 picofarad over the entire operating range, gives you a true set and forget installation. L3540 controllers are used with NULL-KOTE™ probes, available in a wide variety of lengths and designs to fit every application.

Princo, one of the pioneers of RF level sensing technology, has provided accurate, dependable, long lived service
for thousands of applications in all types of industries, worldwide for more than 4 decades

Specifications

Type
Probe Contact
Full Scale
1 - 5 ft
Output
Relay
Excitation
12 - 34 V DC
95 - 135 V AC
205 - 250 V AC
IP Rating
NEMA 4X
NEMA 7
NEMA 9
Min Temperature
-184 °C
Max Temperature
260 °C

Models

L3540
Remote Point Level Controller
L853
Standard Probe
L854
Probe for non-conductive, low-viscosity liquids
L855
Point Level Probe
L857
Point Level Probe
L861
Fly Ash Probe
L862
Short Probe for rugged service
L863
Heavy Duty Standard Probe
