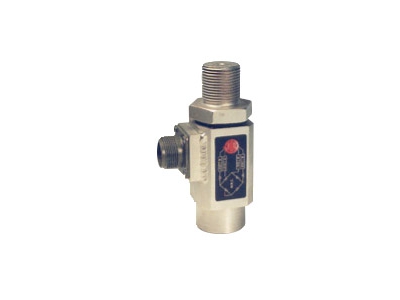

F654

Rod End Mount

Sensor Data Technologies Inc.

  • Fatigue Rated
  • Tension & Compression
  • Accuracy: ±0.45 R.O.
  • Outer Diameter: 38.1mm
  • Height: 114.3mm
  • Connector: PT02E-10-6P Connector
  • Alloy Steel with Satin Nickel Finish

Specifications

Type
Rod Type
Fatigue Rated
Application
Tension & Compression
Full Scale
5000 lbs
10000 lbs
15000 lbs
20000 lbs
25000 lbs
Output
2 mV/V
Precision
±0.45 % FS
Excitation
10 V DC
10 V AC
Min Temperature
-54 °C
Max Temperature
93 °C

Models

F654-106-10K
F654-106-15K
F654-106-20K
F654-106-25K
F654-106-5K
