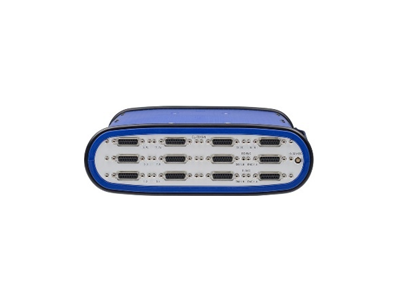

CL-4124

imc C-SERIES Modular Unit

imc Test & Measurement

  • 24 Analog Flexible Inputs, Screw Terminal Connectors
  • 4 Analog Outputs, Screw Terminal Connectors
  • 4 Counter Inputs (or 2 Encoder Inputs), Screw Terminal Connectors
  • 8 Digital Inputs & 8 Digital Outputs, Screw Terminal Connectors
  • Voltage, Current or Temperature Inputs
  • CANbus Interface with 2 Nodes (Fast Data Mode)
  • Onboard Computation & Control Logic

Specifications

Family
imc C-Series
Unit Type
Base
Standalone
Max Throughput
400 kS/s
Input Type
Voltage
Current
ICP
Thermocouple/RTD
Digital
Frequency
Encoder
Analog Inputs
24
Digital Inputs
12
Analog Outputs
4
Digital Outputs
8
Field Interface
GPS
CANbus
Sync Pulse
Max Bandwidth
11 kHz
Max Sample Rate
10 kHz
50 kHz
100 kHz
Resolution
16-bit
Communication
Ethernet
Min Temperature
-10 °C
-20 °C
Max Temperature
55 °C
85 °C
IP Rating
IP20

Models

CL-4124-N
24 Analog Inputs, 4 Analog Outputs, 4 Counter Inputs, 16 Digital I/O, -10°C to 55°C
CL-4124-N-ET
24 Analog Inputs, 4 Analog Outputs, 4 Counter Inputs, 16 Digital I/O, -20°C to 85°C
