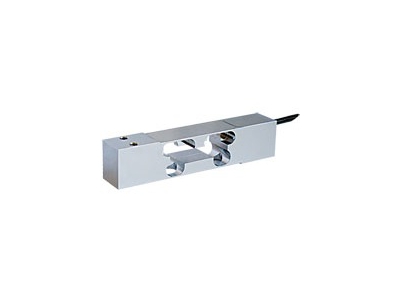

AXL

Single Point Load Cell

Scaime

  • Approved up to 3000d OIML R60
  • Off-Center Load Compensated
  • Tension & Compression
  • Accuracy: ±0.017% F.S.
  • Length: 135mm
  • Width: 25mm
  • Height: 30mm

Specifications

Type
Weighing Beam
Application
Tension & Compression
Full Scale
22 lbs
33 lbs
45 lbs
112 lbs
165 lbs
Output
2 mV/V
Precision
±0.017 % FS
Excitation
1 V - 15 V DC
IP Rating
IP69K
Min Temperature
-10 °C
Max Temperature
40 °C

Models

AXL-C3 10e
