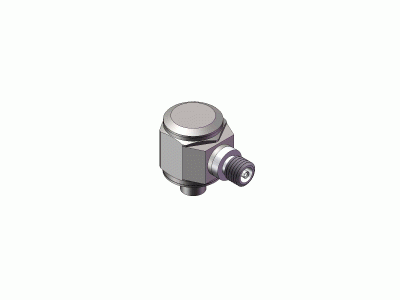

3035M18

Miniature LIVM Accelerometer

Dytran Instruments Inc.

  • Miniature IEPE Accelerometer
  • 10 mV/g sensitivity
  • 500g range
  • 0.5 to 10,000 Hz (±5%)
  • 5-44 radial connector
  • M3 stud mount
  • Linearity; 1.0% - best fit between any two points used for calibration

Details

The Dytran model 3035M18 is a miniature IEPE accelerometer, available with a 10 mV/g sensitivity, an overall height of just 0.33 inches (8.3 millimeters) and a total weight of 2.5 grams.

Sensors feature a rugged stainless steel construction, M3 stud mount and 5-44 radial connector. Units are hermetically sealed for reliable operation in high humidity and dirty environments.

Recommended Accessories: model 4110C current source power unit

Compatible Cables: 6014A, 6017A, 6021A, 6024A, 6025A, 6028A, 6029A, 6040A, 6056A, 6092A

Specifications

Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
500 g
Output
10 mV/g
Excitation
18 - 30 V DC
Material
Stainless Steel
Mounting
Integral Stud
Connection
5-44 Coaxial
Min Temperature
-51 °C
Max Temperature
121 °C

Models

3035M18
